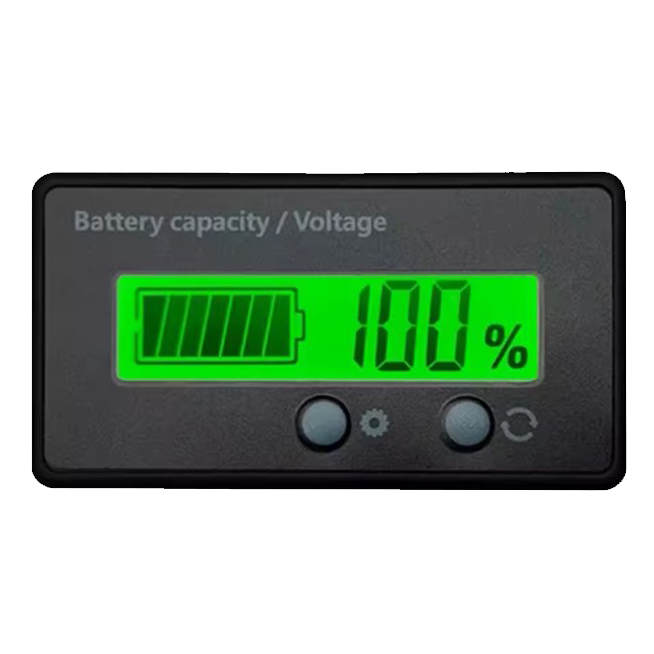

Tester μπαταρίας, μέτρηση ποσοστού χωρητικότητας και ένδειξη σε Volt – OH322 OEM

15.80

Tester μπαταρίας, μέτρηση ποσοστού χωρητικότητας και  ένδειξη Volt

deliveryΆμεση παραλαβή  Παράδοση σε 1-3 εργάσιμες ημέρες

* Η Aμεση Παραλαβή ισχύει εάν  το προϊόν δεν αναφέρεται αμέσως παρακάτω ως εξαντλημένο, και απαιτεί επικοινωνία για επιβεβαίωση του αποθέματος.

5 σε απόθεμα

ΚΩΔΙΚΟΣ ΠΡΟΙΟΝΤΟΣ : MD860 Κατηγορίες:

Περιγραφή

Tester μπαταρίας, μέτρηση ποσοστού χωρητικότητας και  ένδειξη Volt
Μέτρηση μπαταρίας λιθίου με καλωδιο 30 cm περίπου
Οθόνη LCD

Specifications:
  • Display: Power, Voltage, Close, the key for cycle.
  • Voltage Range: 6-63V, products will display based on the voltage value , voltage fluctuations, power meter will be follow as the voltage fluctuation! (Comes with reverse polarity protection, can be guarantee use effectively )
  • The product is suitable for lead-acid 12V, 24V, 36V, 48V (can be changes via key, specific please see setup instructions as below)
  • The product is suitable for 3.7V lithium series multi-platform, 3 string, 4 string, 5 string, 6 string, 7 string and 8 string 9 string 10 string 11 string 12 string 13 string 14 string 15 string (can be changes via key)
  • Setup steps:
    Press and hold the setting button to power the battery, enter the setting interface
    Short press the setting button to select the battery specification (P=lead acid L=lithium battery F=lithium iron phosphate battery)
    Short press the function key to select the number of battery strings (the setting key is increased, the function key is reduced)
    Long press the function key to set the S mode, the setting key selects the corresponding mode, and the function key is turned on or off.

    After setting it, you can re-power it.

    S1: %/V 2 seconds in turn display
    S2: 10 second delay off
    S3: Turn on the backlight
    S4: Turn on LOGO
    S5: Battery curve selection

    Instructions:

    1. Press and hold switch on the product, power on, automatically select the interface ( please follow as the code corresponds blow)
    2. Select your battery type after corresponding, for example 3 series lithium battery, you need to enter the selection screen, press the key point to L3 interface, then off, re-energized, choose success, such as the need to set 12V lead-acid batteries, the key point press to P12V interface, power, re-energized, both choose success
    3. Instruments can be used if you Select successful . . Meter shows the power interface, tap switch, switch to voltage interface, click the switch, turn off the meter. cycle
    shown as the code corresponds

    Code: Suitable for

    L3: 3 string lithium
    L4: 4 string lithium
    L5: 5 string lithium
    L6: 6 string lithium
    L7: 7 string lithium
    L8: 8 string lithium
    L9: 9 string lithium
    L10: 10 string lithium
    L11: 11 string lithium
    L12: 12 string lithium
    L13: 13 string lithium
    L14: 14 string lithium
    P12V: 12V lead-acid
    P24V: 24V lead-acid
    P36V: 36V lead-acid
    P48V: 48V lead-acid

    Special Function Setting (requires electric iron, you must power off setting, electric iron must be grounded)
    A point connection, the backlight will be automatically shut down if delay10 seconds , the voltage fluctuation will automatic wake-up exceeds 0.3V / 0.5 seconds.
    B point connection, lithium choose 3-4.1V curve (lithium professionals)



Συσκευασία: Σακουλάκι / Ζελατίνα
